LABORATORY TEST INSTRUMENTS

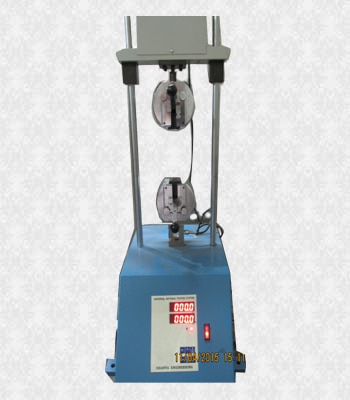

HAND OPERATED TENSILE TESTING SYSTEM

In stock•cod not available

Contact Us

Phone Number

08048038963

Please keep 0 before dialling the number.

Email Address shantaengineering@yahoo.co.in

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Address Kolshet Road , Dhokali , Thane West

Thane, India, 400607

Description

Hand Operated Tensile Testing System, the two column frame with a hand wheel operated lead screw is a perfect tool for tension, compression and flexural testing of springs, rubber, paper, film etc., with apt attachments. These are appreciated for their durability, accuracy of results and high tensile strength. It is a better Tensile Tester Machine having variety of applications. Main Features : ❖ Table Top Model ❖ Digital Display of load and Elongation. ❖ Feather touche Key board operation. ❖ Tare Facility for force and displacement. ❖ Load display in Kg. Or Newton. MODEL SET-H-1000 N SET-H-2500 N SET-H-5000 N Max permissible force In Kg 100 250 500 Load Resolution in Kg 0.01 0.03 0.05 Elongation/Compression Resolution in mm 0.1 0.1 0.1 Width between column in mm 200 200 200 Load Cell Safety Alarm Alarm Alarm Size (w x d x h) in mm 300 x 430 x 1100 300 x 430 x 1100 300 x 430 x 1100 Power Supply 230 VAC 50 Hz, Single Phase 230 VAC 50 Hz, Single Phase 230 VAC, 50 Hz, Single Phase

Other Products

view all

6814772a5d263414004dd4a4 Card 2

product image
LABORATORY TEST INSTRUMENTS

CREEP TESTER

Product Details: Minimum Order Quantity 1 Piece Usage/Application Laboratory Material mild steel Voltage 230V Temperature Range 1200 Country of Origin Made in India Shanta Engineering ” are Manufacturer of Material Testing Equipment, Hot Air Oven, Hardness Tester, Laboratory Hot Plates, Tensile Testing Machine, Laboratory Apparatus, and much more Request Callback

6814772a5d263414004dd4a4 Card 2

product image
LABORATORY TEST INSTRUMENTS

HALOGEN GAS TEST APPARATUS

To determine the amount of halogen acid gas evolved during combustion of compound based on halogenated polymers & compounds containing halogenated additives, taken from cable insulation and outer sheath. 1. Tube Furnace 2. Electronic digital temp. Indicator K controller up to 10000c 3. Quartz Tube 4. Thermo couple 5. Flow meter 6. Complete set to Glassware’s 7. Quartz boat 8. Conductivity Meter 9. Ph Meter

6814772a5d263414004dd4a4 Card 2

product image
LABORATORY TEST INSTRUMENTS

FIRE SURVIVAL TEST

We are offering Fire Survival Tester to our clients. Grade Manual, semi-automatic Brand Shanta Engineering Type of testing Fire survival Scope of Supply Includes Cable Supporting System, Continuity checking arrangement, Source of Heat. Cable Dia Less than 20 mm Display type Analog, Digital Features: Test Set up for Resistance to fire with Water as per BS 6387:1994 D 3 Test Set up for Resistance to fire with Mechanical Shock as per BS 6387:1994 D4 Test Set Up for Resistance to Fire Alone as per BS -6387:1994. D2 & IEC-60331 Part 11 for cables less than 20mm Dia The scope of Supply includes- Cable Supporting System Continuity checking arrangement Source of Heat.
