Description

Product details

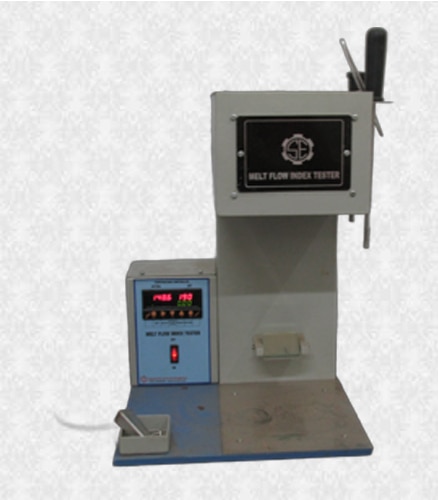

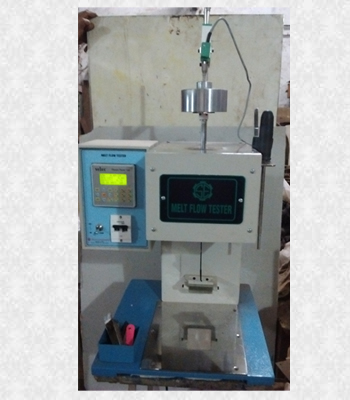

Melt Flow Index instrument measures the rate of extrusion of molten resins through a die of specified length and diameter under prescribed conditions of temperature, load, piston position. This instrument measures the rate of extrusion of molten resins through a die of specified length and diameter under prescribed conditions of temperature, load, piston position. Instrument with the following accessories are supplied : Digital Timer, Temp. Controller (PID), Piston, Barrel Cleaner, Orifice Cleaner Scoop. Specification : ❖ Weights : 2.16 kgs. and 5.0 kgs. ❖ Max. Temp. Ambient to 300 ° C ❖ Resolution : 0.10 ° C ❖ Accuracy : + 0.20 ° C ❖ Timer : 0-99.9 min. Also MFI Tester available as per ASTM D1238, method B Features : ❖ PLC base Machine ❖ Charging the sampole is manual ❖ No weighing as in Method A ❖ Automatic measurement of MFI with the help of Encoder ❖ High accuracy ❖ Best for the high flow material where manual testing would be difficult Additional Information : ❖ Item Code : ASTMD-1238 ❖ Minimum Order Quantity : 1 Unit
